$194.95
$253.44
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

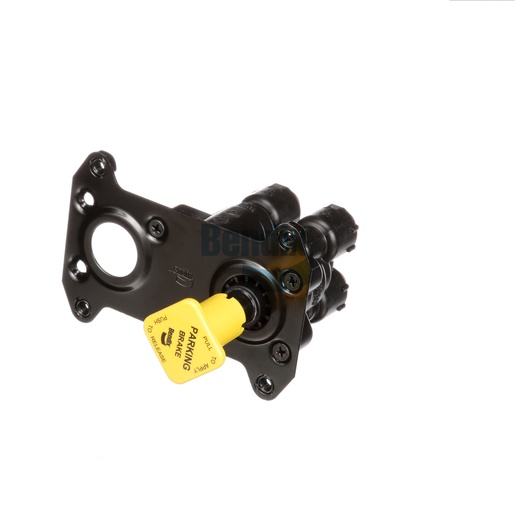

The Dash Valve from Bendix is a critical component in air disc brake systems, providing precise control over brake functions. This valve is designed for robust performance in challenging environments, featuring a compact size and lightweight design for easy installation. With its multiple ports, it facilitates seamless connections within the braking system, ensuring responsive braking action. The valve is engineered to operate effectively under a wide range of temperatures, enhancing its reliability in various conditions. For high-quality Bendix OEM parts, including this Dash Valve, look no further than Source One Parts Center, where exceptional service and genuine products await you.
SPECIFICATIONS
VMRS
013-010-049: Parking Valve - Tractor
Delivery 21 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
6.0 x 6.0 x 4.0 in
Weight
1.12 lb
