$214.95
$279.44
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

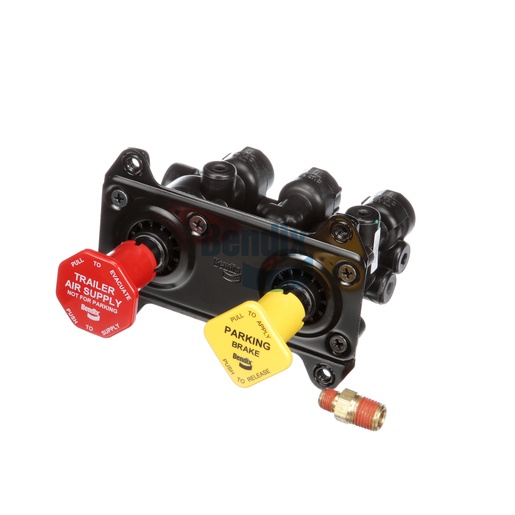

The Bendix Dash Valve is a sophisticated component designed to enhance the control and functionality of your vehicle's braking system. This valve is critical for managing air supply and pressure in air disc brake systems, ensuring that your brakes engage and disengage smoothly. Weighing 0.7 kg, this valve is crafted from durable materials to withstand the rigors of commercial driving. Its precise engineering enables quick response times, which is essential for maintaining vehicle safety during operation. The Dash Valve's design includes features that allow for easy installation and integration with existing systems, minimizing downtime during maintenance. By ensuring optimal air pressure regulation, this valve contributes to improved braking performance and vehicle reliability. When you choose the Bendix Dash Valve, you're making a smart investment in your vehicle's safety. Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring you receive reliable components that enhance your vehicle’s braking capability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (4x)
Length
128.5 mm (5.06 in)
Width
136.2 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Height
91.9 mm (3.62 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.48 lb
