$299.95
$359.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

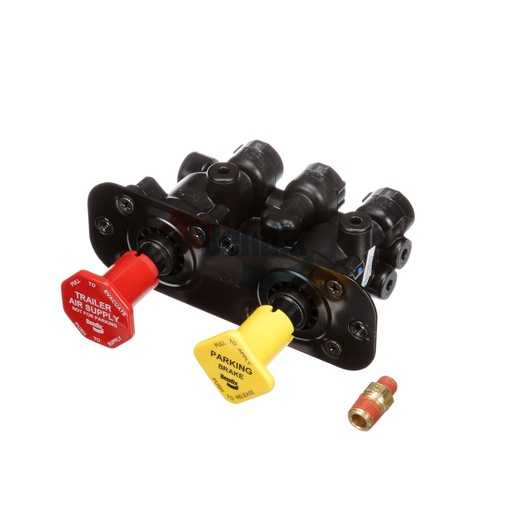

The Dash Valve is a key component in the air disc braking system, designed to facilitate smooth and responsive brake operation. With its durable construction and efficient design, this valve ensures that your vehicle can handle the demands of heavy-duty applications while maintaining optimal braking performance. Its versatile mounting options and robust features make it suitable for a range of commercial vehicles. The Dash Valve plays a critical role in ensuring that braking power is effectively transmitted, enhancing safety and control during operation. For genuine Bendix OEM parts like the Dash Valve, Source One Parts Center stands out as the best choice, assuring quality and reliability for your braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 7.0 x 3.0 in
Weight
1.54 lb
