$289.95
$347.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

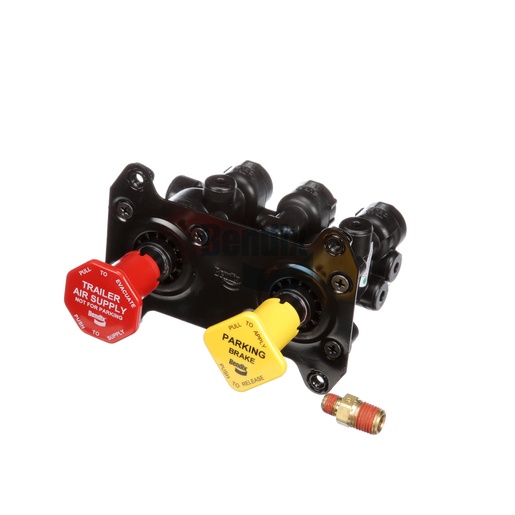

The Bendix Dash Valve is an essential component for controlling the operation of air disc brakes in commercial vehicles. This valve regulates the flow of air to and from the brake chambers, ensuring precise braking action and response. With its durable construction and compatibility with various systems, this dash valve is designed to withstand the conditions faced in heavy-duty applications. Featuring a maximum operating temperature of 200°F, it maintains reliability even in high-heat environments. Moreover, the valve's compact design allows for easy installation, making it a convenient choice for truck operators looking to enhance their braking systems. With carefully engineered ports for efficient air delivery, this valve plays a vital role in ensuring the safety and performance of your vehicle. For top-quality genuine Bendix OEM parts, Source One Parts Center is the best place to ensure that your vehicle maintains its high performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (4x)
Auxiliary Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
6.0 x 4.0 x 6.0 in
Weight
1.61 lb
