$299.95
$359.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

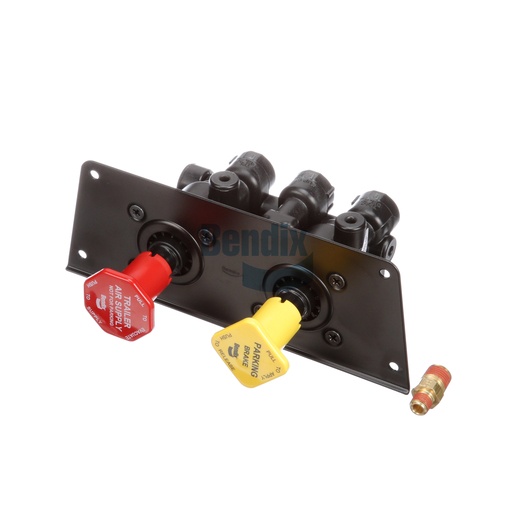

The Bendix Dash Valve is a vital component for controlling the braking functions of your commercial vehicle. Designed for air disc brake systems, this valve facilitates smooth operation and efficient brake engagement, ensuring optimal performance in various driving conditions. With a lightweight design and durable construction, the dash valve can withstand high pressures and extreme temperatures, making it suitable for heavy-duty applications. Its compact size allows for easy installation and maintenance, providing convenience for fleet operators. The Bendix Dash Valve is essential for maintaining control and safety when operating your vehicle. When you purchase from Source One Parts Center, you can trust that you are getting genuine Bendix OEM parts that guarantee reliability and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .200 IN (4x)
Package Dimensions
5.0 x 9.0 x 4.0 in
Weight
1.72 lb
