800527
Dash Valve
Bendix
AVAILABLE
More than 10 are currently available
Ships within 8-10 business days
$134.95
$161.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

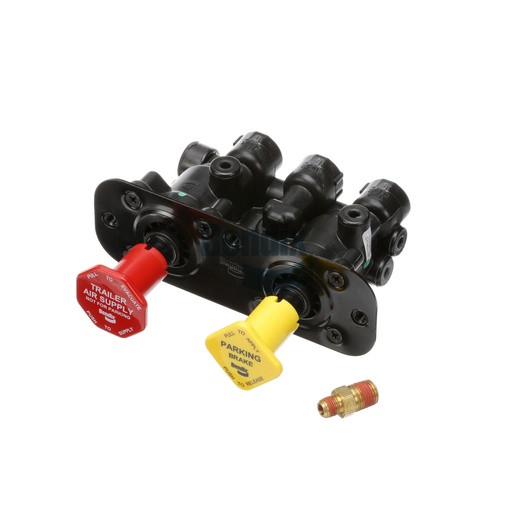

The Bendix Dash Valve is a critical component in your truck's air brake system, designed to provide efficient control over the braking process. This valve features multiple ports for supply and delivery, enabling precise management of air pressure for optimal braking performance. With a compact design and a weight of just 1.57 pounds, it is lightweight yet built to withstand the rigors of commercial use. The button included in the design enhances functionality, allowing for user-friendly operation. When it comes to sourcing high-quality Bendix OEM parts, Source One Parts Center is your top destination, ensuring you receive the best products for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (3x)
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 7.0 x 3.0 in
Weight
1.57 lb
