$289.95
$347.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

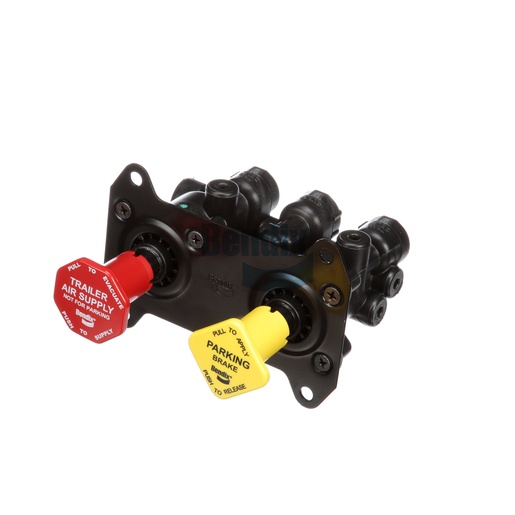

The Dash Valve is an important part of the Bendix air disc brake system, allowing for precise control of the air pressure applied to the brakes. This component is designed to enhance safety by ensuring quick and reliable brake engagement and release. Its robust construction and reliable operation make it crucial for maintaining optimal braking performance, especially in demanding conditions. By facilitating effective communication between the driver and the braking system, it plays a significant role in ensuring smooth and safe stops. When you purchase from Source One Parts Center, you can trust that you are getting genuine Bendix OEM parts that meet the highest standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
5.0 x 6.0 x 4.0 in
Weight
1.54 lb
