$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

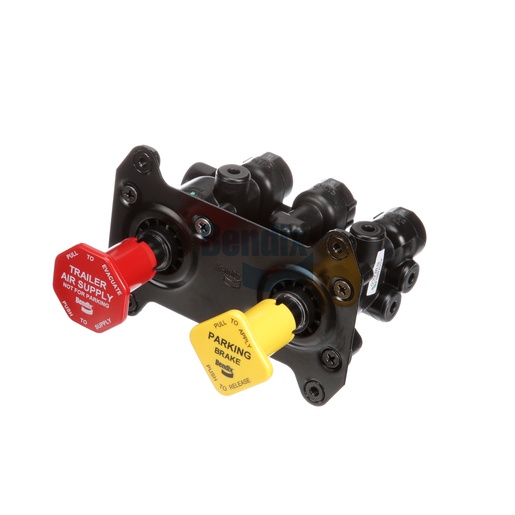

The Bendix Dash Valve is a crucial component in the air disc brake system, providing control over air distribution and ensuring optimal braking performance. Its compact design, weighing only 1.5 lb, allows for easy installation in various configurations, making it a versatile choice for fleet operators. This valve features multiple ports for supply and delivery, ensuring efficient air flow throughout the braking system. With operational temperature ranges from -40 °F to 200 °F, it is designed to perform reliably under diverse environmental conditions. The durable construction and precise engineering of this dash valve enhance the overall safety and effectiveness of your vehicle's braking system. For genuine Bendix OEM parts, Source One Parts Center is your go-to source, offering quality products and excellent customer service.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 6.0 x 4.0 in
Weight
1.5 lb
