$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

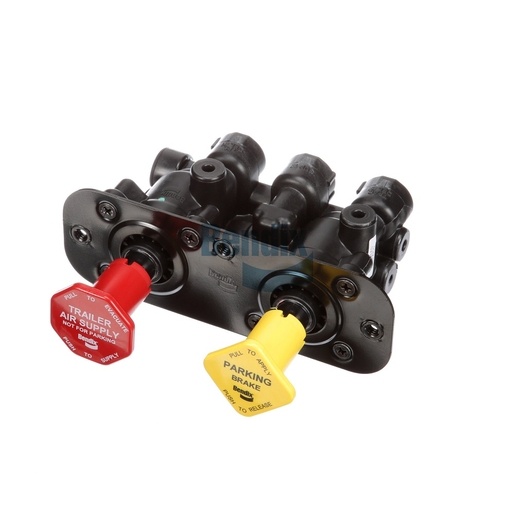

The Dash Valve from Bendix is a crucial component in the air disc brake system, designed to ensure optimal performance and safety in commercial vehicles. This valve features multiple ports for versatile connectivity, facilitating easy integration into your vehicle's braking system. Its durable construction allows it to withstand extreme operating conditions, ensuring reliable performance in various environments. The valve is equipped with buttons for easy operation and is engineered to trip at precise pressures, enhancing the responsiveness of your braking system. For fleet operators looking for quality and reliability, Source One Parts Center offers genuine Bendix OEM parts, making it the ideal place to source components for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT (Plugged)
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 7.0 x 3.0 in
Weight
0.01 lb
