800520

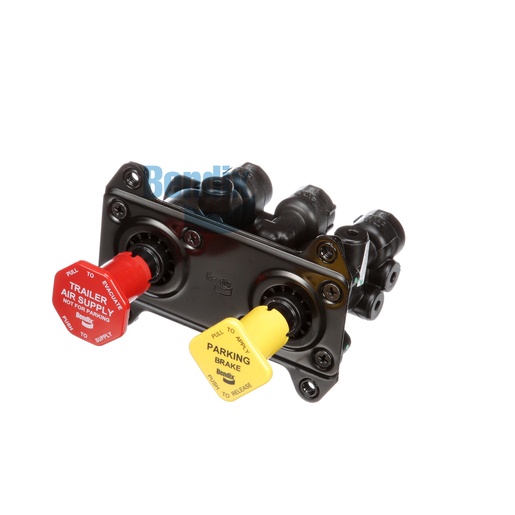

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Dash Valve is a critical component in your truck's air disc brake system, providing control over the braking process. Manufactured in Mexico, this valve is designed for durability and efficiency, ensuring it operates smoothly under various conditions. With a net weight of 0.7 kg, it fits seamlessly into your existing brake system, enhancing its overall performance. The valve features multiple ports for exhaust and supply lines, allowing for versatile installation options. Its high operational temperature range ensures that it remains functional even in challenging environments. By selecting genuine Bendix parts like this Dash Valve, you enhance the reliability and safety of your braking system. For all your Bendix OEM parts, Source One Parts Center offers the best service and quality, ensuring your commercial vehicle performs at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (4x)
Length
128.5 mm (5.06 in)
Width
136.1 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Height
91.9 mm (3.62 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.54 lb
