DESCRIPTION

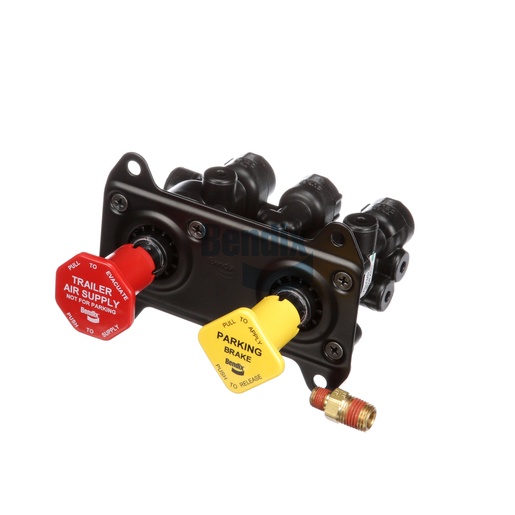

The Dash Valve from Bendix is a critical component in ensuring the efficient operation of air disc brakes. It regulates air pressure within the braking system, ensuring optimal performance during operation. This valve is designed to withstand high temperatures and pressures, making it ideal for the demanding environments of commercial trucking. The precise engineering of the dash valve contributes to smoother braking, enhancing vehicle control and safety on the road. Its compact design allows for easy installation in tight spaces, which is essential for maintaining the integrity of the entire braking system. For those looking for quality and reliability in Bendix OEM parts, Source One Parts Center provides the best options for securing top-notch components suitable for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Auxiliary Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
6.0 x 4.0 x 6.0 in
Weight
1.57 lb
