800517

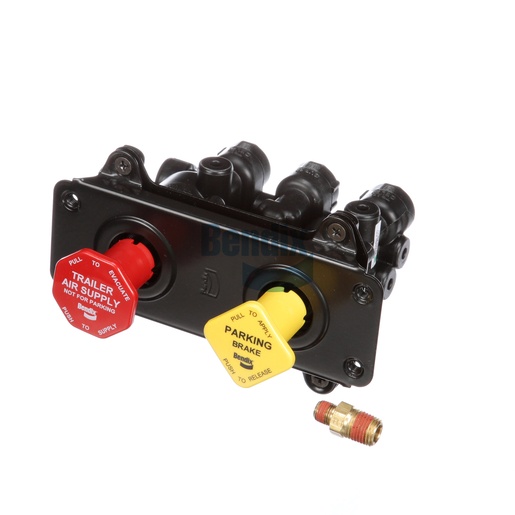

Dash Valve
Bendix
AVAILABLE
More than 10 are currently available
Ships within 3-5 business days
$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Dash Valve is an essential component for air disc brake systems in commercial vehicles, ensuring effective control of air pressure and flow during braking operations. This valve is designed for high performance, featuring robust construction that withstands the harsh conditions often associated with commercial trucking. Operating efficiently within a temperature range of -40°F to 200°F, it ensures dependable functionality under various environmental conditions. The valve's multiple ports allow for seamless integration into existing systems, facilitating quick installation and maintenance. With precise trip pressures for both tractor and trailer applications set at 30 ± 10 PSI and 35 ± 10 PSI, you can trust this valve to provide the responsiveness necessary for safe braking. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted provider, ensuring you receive quality components that meet industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120,848180
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 6.0 x 4.0 in
Weight
1.5 lb
