DESCRIPTION

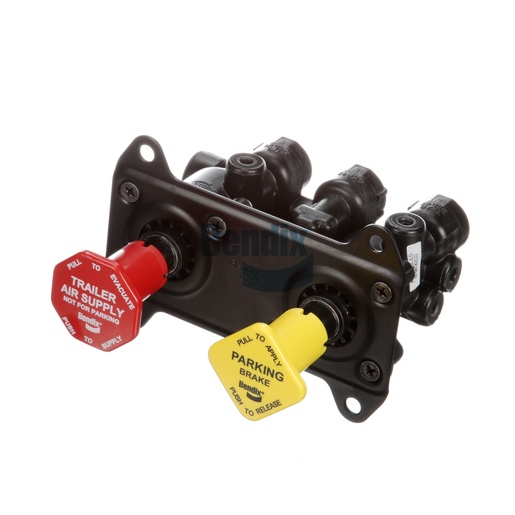

The Bendix Dash Valve is an essential component for ensuring optimal performance in your air disc brake system. With multiple ports for supply, exhaust, and delivery, this valve ensures efficient airflow management, allowing for precise control over braking actions. Designed to withstand temperatures from -40°F to 200°F, it operates effectively in various conditions, making it suitable for heavy-duty applications. Its compact size and straightforward mounting mechanism simplify installation, while the inclusion of buttons enhances functionality. The dash valve is a reliable choice to maintain safety and performance in your commercial vehicle. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring that you receive top-quality components for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Length
128.5 mm (5.06 in)
Width
136.2 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Height
91.9 mm (3.62 in)
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Weight
1.43 lb
