$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

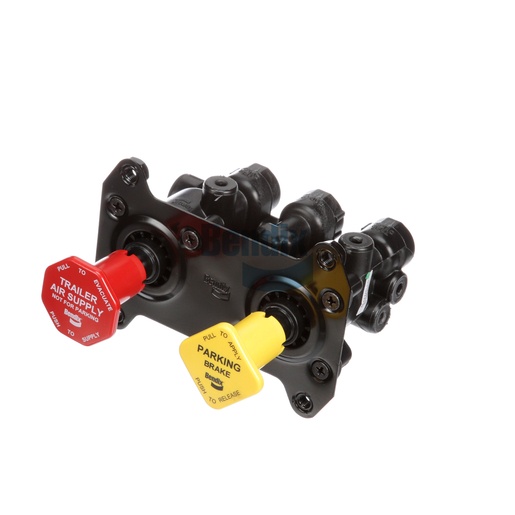

Engineered for peak performance, this Dash Valve is integral to the air disc brake systems in commercial trucks, providing precise control over air pressure and flow. Its durable design ensures longevity and reliability, even in the most demanding environments. With a working temperature range of -40°F to 200°F, the valve performs optimally, ensuring the safety of your vehicle while on the road. The product features multiple ports for efficient air management, allowing for easy installation and maintenance. With a trip pressure calibrated at 30 ± 10 PSI for the tractor and 35 ± 10 PSI for the trailer, this valve guarantees a quick response during braking, enhancing overall vehicle safety. The inclusion of buttons simplifies the operation, making this Dash Valve user-friendly for all drivers. Choose Source One Parts Center for your Bendix OEM parts to guarantee authenticity and superior quality that supports the demanding nature of commercial vehicle operations.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 6.0 x 4.0 in
Weight
1.5 lb
