800502

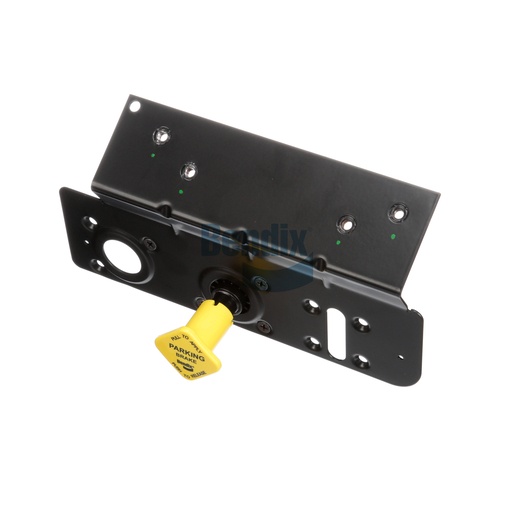

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Dash Valve from Bendix is a critical component designed to improve the functionality of your vehicle's braking system. Weighing 0.5 kg (1.19 lb), this valve is engineered for durability and reliability, capable of handling various pressure conditions while providing efficient control of air flow. Its compact design allows for easy installation, making it an ideal choice for fleet maintenance. By ensuring proper air management, this dash valve enhances the overall performance and safety of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing peace of mind with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery 21 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (4x)
Height
123.4 mm (4.86 in)
Length
126.5 mm (4.98 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
241.3 mm (9.5 in)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.19 lb
