$289.95
$347.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

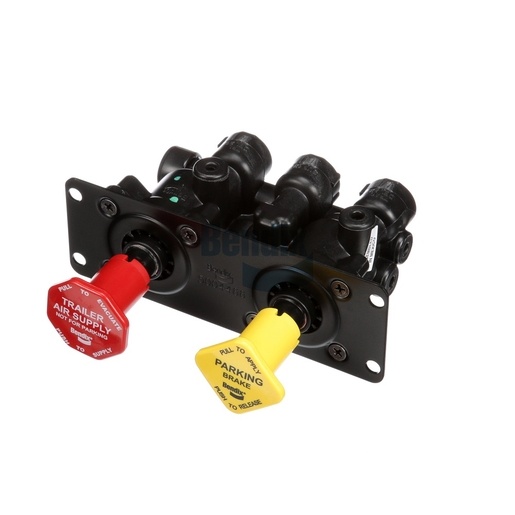

The Dash Valve from Bendix is a crucial element in the air disc brake system, designed to facilitate efficient operation and enhance overall vehicle performance. This valve regulates the flow of air within the braking system, ensuring that the brakes engage and release smoothly, which is essential for maintaining safety and control. Constructed from durable materials, the dash valve is engineered to withstand the harsh conditions of commercial vehicle operations, providing reliable performance over its lifespan. Its straightforward installation makes it an ideal choice for fleet maintenance, allowing for quick replacements and upgrades. The valve's design promotes optimal braking response, reducing the risk of brake fade and enhancing overall safety on the road. For genuine Bendix OEM parts, Source One Parts Center is the premier source, offering authentic components that ensure your commercial vehicles perform at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
5.0 x 7.0 x 3.0 in
Weight
1.36 lb
