$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

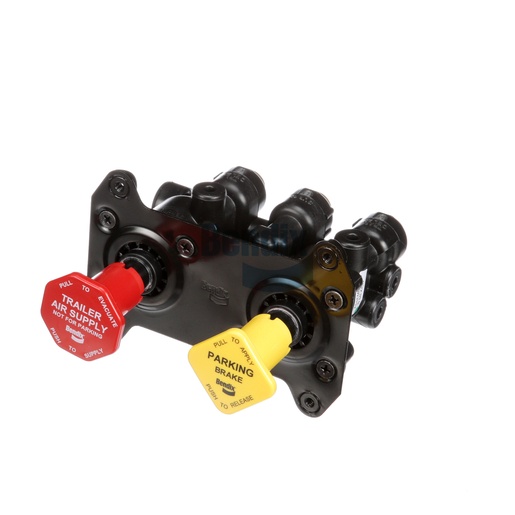

The Bendix dash valve is a critical component that plays an essential role in the operation of air disc brakes. This valve features a compact design and is engineered for optimal performance, allowing for precise control of air flow within the braking system. With a maximum operating temperature of 200 °F and a minimum of -40 °F, this valve is built to perform reliably in a variety of operating conditions. Its easy installation and compatibility with various systems make it an excellent choice for fleet managers looking to enhance their vehicles' braking efficiency. For high-quality Bendix parts, Source One Parts Center is your trusted partner, providing you with genuine OEM products that ensure your vehicles run safely and smoothly.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 21 Port
3/8 PTC
Delivery 22 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
6.0 x 6.0 x 4.0 in
Weight
1.65 lb
