800260
Dash Valve
Bendix
AVAILABLE
More than 10 are currently available
Ships within 6-8 business days
$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

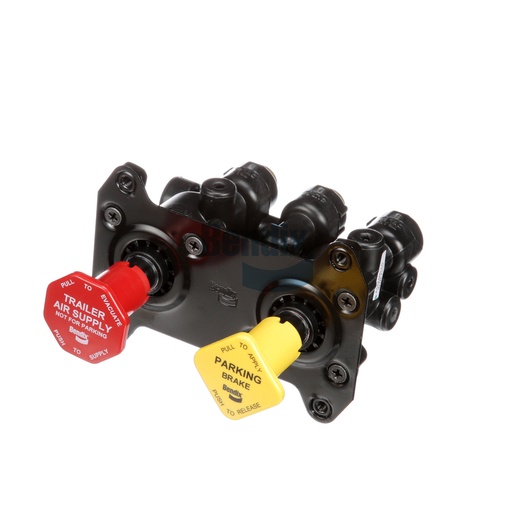

The Bendix Dash Valve is an essential component in the air disc brake system, designed to provide precise control over the braking process. This valve features a compact design with a net weight of 0.7 kg, making it easy to install while ensuring efficient functionality. With multiple ports for supply and exhaust, this valve allows for quick and responsive brake application, enhancing the overall performance of your vehicle's braking system. Its robust construction ensures durability, enabling it to withstand the demanding conditions of commercial trucking. Regular maintenance of critical components like the dash valve is vital for preventing brake system failures and ensuring safe operation on the road. For those looking for reliable braking solutions, Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring you receive quality products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 21 Port
3/8 PTC
Delivery 22 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Mounting
M5 x 0.8-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
6.0 x 6.0 x 4.0 in
Weight
1.46 lb
