$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

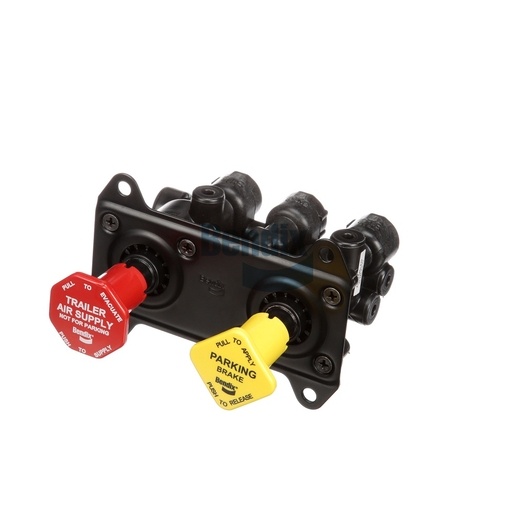

Enhance the air brake system of your commercial vehicle with the Bendix Dash Valve, a vital component designed to streamline air distribution for optimal braking performance. Featuring a compact design, this valve includes multiple ports for easy connection, allowing for effective management of air pressure within the brake system. With a maximum operating temperature of 200°F and a minimum of -40°F, this dash valve is engineered to perform reliably in harsh conditions. Its tractor trip pressure of 30 PSI ensures that your vehicle maintains responsiveness during critical driving situations. Furthermore, this valve’s lightweight construction (weighing only 0.7 kg) makes it an efficient choice for any air brake system. The dash valve is not just about performance; it also simplifies troubleshooting and maintenance with its user-friendly design. For those looking to upgrade or replace their dash valve, Source One Parts Center is the ideal place to find genuine Bendix OEM parts, ensuring quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 21 Port
3/8 PTC
Delivery 22 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
6.0 x 6.0 x 4.0 in
Weight
1.54 lb
