$164.95
$197.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

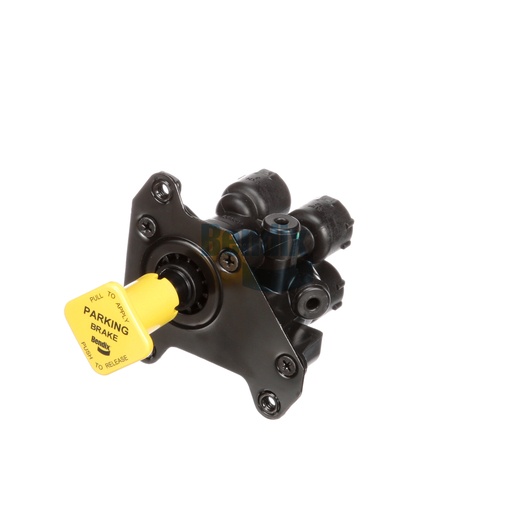

The Dash Valve from Bendix is an essential component for air disc brake systems, offering precise control over brake application and release. This valve is designed to operate within a broad temperature range, from -40°F to 200°F, which makes it suitable for various climatic conditions. With its robust construction, it ensures reliable performance, contributing to the overall safety and effectiveness of your braking system. The Dash Valve features multiple ports for easy integration into your vehicle’s existing air system, ensuring seamless operation. This part also includes buttons for manual control, providing enhanced functionality for drivers. When you choose Source One Parts Center for your Bendix OEM parts, you're investing in quality components that will help maintain the performance and safety of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery 21 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 4.0 x 4.0 in
Weight
0.79 lb
