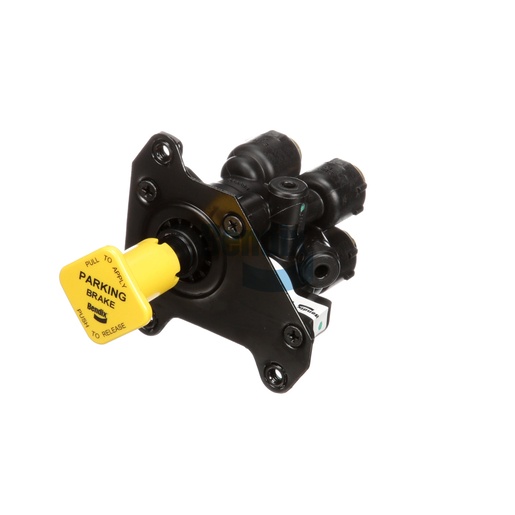

5004770N
Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Dash Valve is a pivotal component within your vehicle's air brake system, designed to enhance the efficiency and reliability of your braking performance. This valve acts as a control point, regulating the pneumatic pressure delivered to the brake chambers, thereby ensuring that your braking system functions smoothly and effectively. With a compact design and robust construction, it is engineered to withstand the demands of heavy-duty applications and extreme environmental conditions, making it a reliable choice for commercial vehicles. The Dash Valve features multiple ports for versatile installation options, and its performance is optimized for both safety and efficiency. By upgrading or replacing your existing valve with this one, you can improve your vehicle's overall braking capability. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, providing you with the assurance of quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.01 lb
