$339.95
$407.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

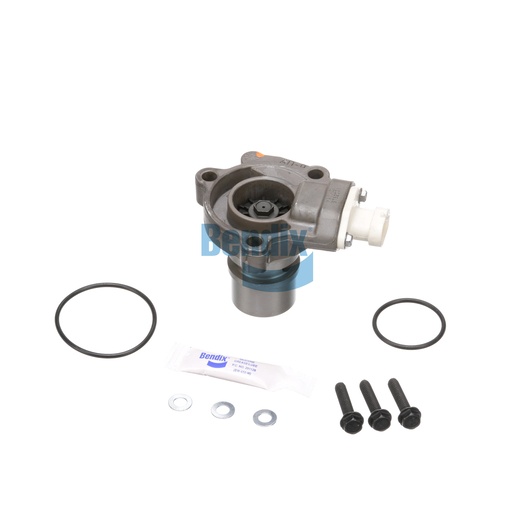

The Bendix Purge Valve Kit is an essential component for air dryers, designed specifically for Bendix AD-9 models. This kit ensures that your air dryer operates efficiently, effectively removing moisture from the air system to prevent freeze-ups and maintain optimal brake function. The kit is equipped with a hard seat purge valve, which enhances system reliability and reduces the risk of leaks. With a minimum operating temperature of -40°F, this kit is designed to function in extreme conditions, making it ideal for heavy-duty applications. Weighing just 0.3 kg, it is easy to install, ensuring quick maintenance and reduced downtime. For those who prioritize quality, Source One Parts Center is your trusted source for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-083: Purge Valve - Air Dryer
Heater / Thermostat Rating
12V / 75W
Harmonized System (HS) Code
848120
Air Dryer Type
Bendix AD-9 Air Dryers only
Purge Valve Type
DLU (Hard Seat)
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Purge Exhaust Port
Open (No Cover)
Heater Connector Color
White
Weight
0.74 lb
