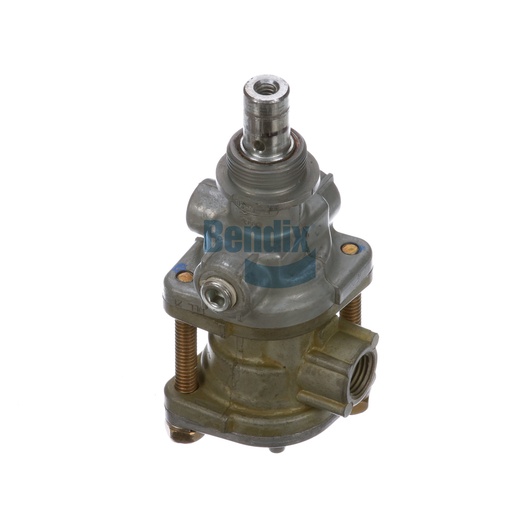

289512R
Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This supply valve is essential for maintaining optimal air pressure in the braking system of commercial vehicles, ensuring safe and responsive braking performance. Designed specifically for Bendix air disc brakes, this valve is engineered to handle high operational demands while ensuring reliability. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand extreme conditions, making it ideal for heavy-duty applications. This valve boasts a plunger diameter of 0.500 inches, allowing for precise control of air flow and pressure management. Its robust construction includes multiple ports for versatile installation options, ensuring compatibility with a range of truck models. For your needs in genuine Bendix OEM parts, trust Source One Parts Center, where quality and reliability come first.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/8-27 NPT
Length
116.8 mm (4.6 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
52.6 mm (2.07 in)
Width
52.6 mm (2.07 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .500 IN (1/4-20 UNC-3B)
Weight
1.15 lb
