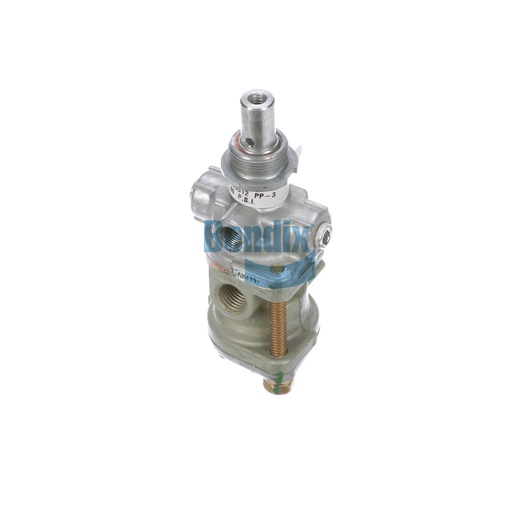

289512
Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Supply Valve is a vital component in air disc brake systems, designed to ensure efficient air flow and pressure management. This valve plays a crucial role in regulating the supply of air to the braking system, enhancing overall performance and safety. With its durable construction and lightweight design, it is engineered for easy installation and reliable operation under varying conditions. The valve's adjustable parameters allow for precise control, ensuring that the braking system operates at peak efficiency. Built to withstand temperatures ranging from -40 °F to 200 °F, it is suitable for heavy-duty applications. For those seeking genuine Bendix parts, Source One Parts Center is your go-to source for authentic OEM components that ensure your vehicle's braking system performs flawlessly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/8-27 NPT
Length
116.8 mm (4.6 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
52.6 mm (2.07 in)
Width
52.6 mm (2.07 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .500 IN (1/4-20 UNC-3B)
Weight
1.15 lb
