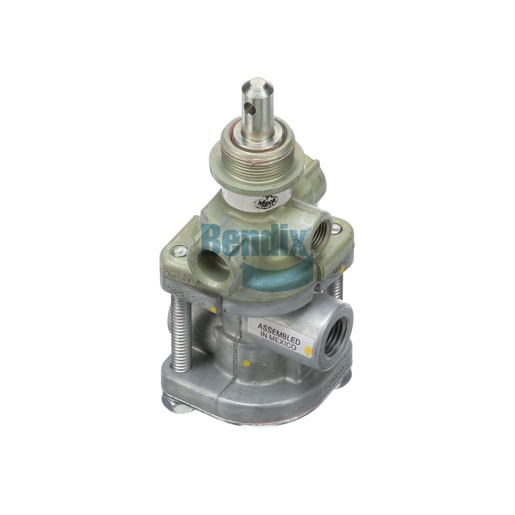

289120N
Supply Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$96.95
$126.04
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Supply Valve by Bendix is engineered to ensure optimal air flow to your vehicle's braking system, promoting efficient brake operation and safety. This valve features a lightweight design at just 0.5 kg, making installation straightforward and convenient. Designed to perform under a wide range of temperatures, from -40 °F to 200 °F, it is built to last in demanding environments. The Supply Valve's precise engineering enhances the overall performance of air disc brakes, ensuring that your vehicle maintains excellent stopping power. Source One Parts Center is the premier source for genuine Bendix OEM parts, providing quality components that enhance the safety and reliability of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.14 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
121.2 mm (4.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .374 IN
Weight
1.15 lb
