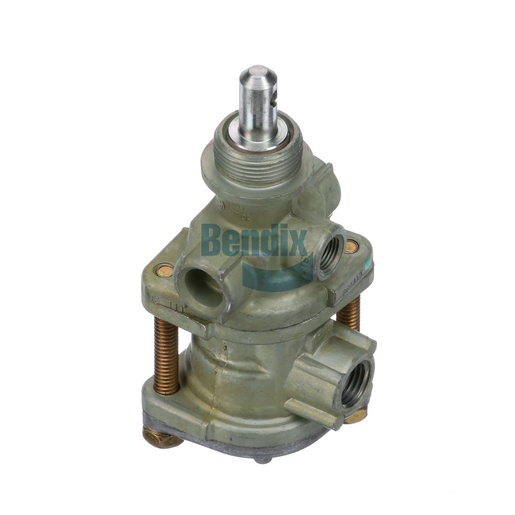

288746N
Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix supply valve plays a critical role in air brake systems, providing reliable control over air supply and ensuring optimal performance of air disc brakes. This robust valve is engineered for durability and efficiency, with a maximum operating temperature of 200°F and a minimum of -40°F, making it suitable for use in a variety of climates. Featuring precise ports for supply and exhaust, this valve enhances the responsiveness of the braking system, ensuring that your vehicle stops safely and effectively under various conditions. Its compact design and lightweight build make it easy to install without compromising on performance. When you choose to buy from Source One Parts Center, you can trust that you are getting authentic Bendix parts, designed specifically for your commercial vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.15 IN
Delivery Port 1
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
117.6 mm (4.63 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Width
50.8 mm (2.0 in)
Height
52.6 mm (2.07 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
1.1 lb
