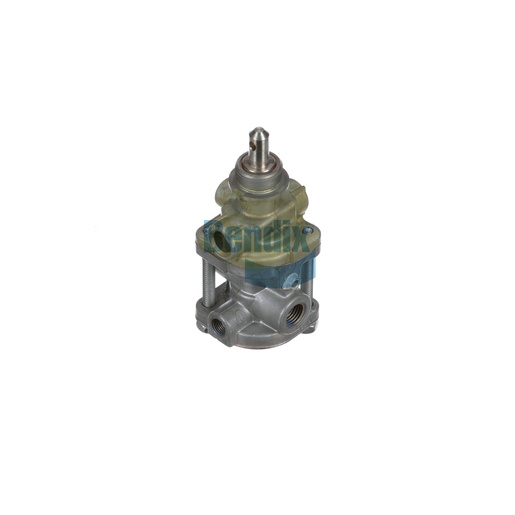

288721R
Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Supply Valve is an essential air brake component designed to manage and optimize air flow within your braking system. Manufactured with precision, it ensures reliable operation across various temperatures, enhancing the overall effectiveness of your air brakes. This valve is built to deliver consistent performance, facilitating smooth braking action and improving safety on the road. The compact design allows for easy installation in tight spaces, making it suitable for a wide range of commercial vehicles. With its robust construction, the supply valve is designed to withstand the rigors of heavy-duty use, ensuring longevity and dependable performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your go-to destination for high-quality automotive components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.14 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
121.2 mm (4.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .374 IN
Weight
1.15 lb
