$174.95
$209.94
FINAL SALE. No returns or exchanges.

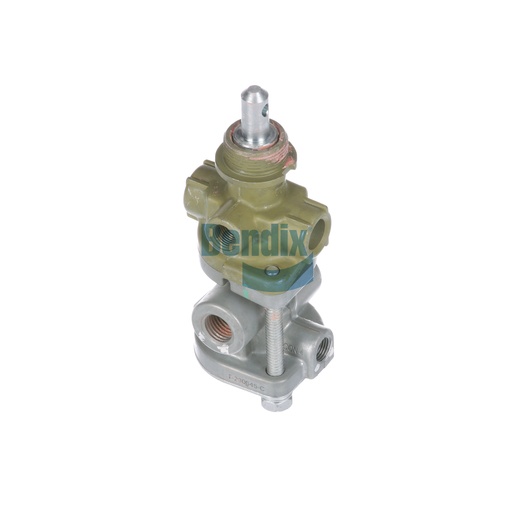

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Supply Valve is an integral component for maintaining the efficiency of air disc brakes, ensuring that air pressure is regulated accurately for optimal braking performance. With a design that accommodates various braking applications, this valve features a lightweight yet durable construction, making it suitable for the rigors of commercial vehicle use. The supply valve is engineered to perform reliably under a wide range of temperatures, ensuring consistent operation across different conditions. Its installation is straightforward, allowing for quick replacements and minimal downtime. Investing in this part is essential for maintaining the safety and efficiency of your braking system. At Source One Parts Center, we pride ourselves on being the best source for genuine Bendix OEM parts, providing you with high-quality components that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.14 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .374 IN
Package Dimensions
5.0 x 3.0 x 2.0 in
Weight
1.15 lb
