288242

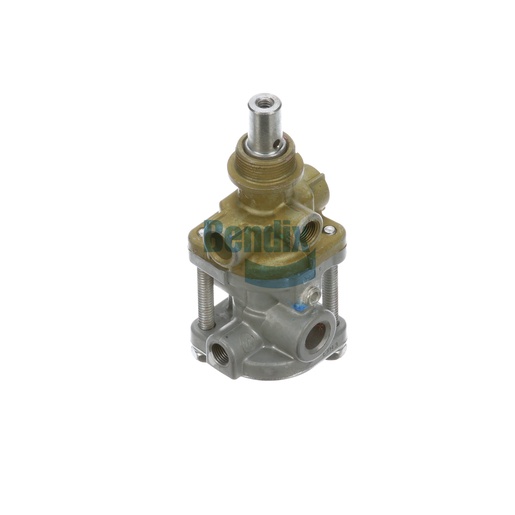

Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Supply Valve from Bendix is a critical component for air disc brake systems, designed to manage the air flow efficiently and effectively. This valve ensures that your braking system receives the correct amount of air pressure for optimal performance, enhancing safety and reliability on the road. Weighing just 1.17 lbs, it is compact and easy to install, making it an ideal choice for both fleet maintenance and individual repairs. The robust design allows this supply valve to withstand the rigors of heavy-duty applications while maintaining precise control over air distribution. When it comes to ensuring your vehicle's air brakes function optimally, choosing genuine Bendix OEM parts is essential. Source One Parts Center offers the best selection of these quality components, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
120.7 mm (4.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .500 IN (1/4-20 UNC-3B)
Weight
1.17 lb
