288241

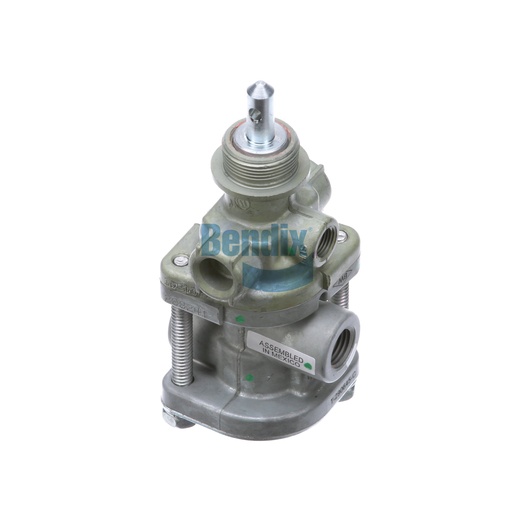

Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Supply Valve from Bendix is engineered to enhance the efficiency of your air brake system by providing precise air pressure control. Its durable construction ensures longevity and reliability, and it is designed to function effectively in extreme temperatures ranging from -40°F to 200°F. The valve facilitates the accurate delivery of compressed air, which is essential for the proper functioning of your brakes, especially in demanding commercial applications. Quick installation means minimal downtime, allowing your vehicle to get back on the road swiftly. By choosing the Supply Valve from Source One Parts Center, you are ensuring that your vehicle is equipped with genuine Bendix OEM parts that guarantee performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.14 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
121.2 mm (4.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .311 IN
Weight
1.12 lb
