288240

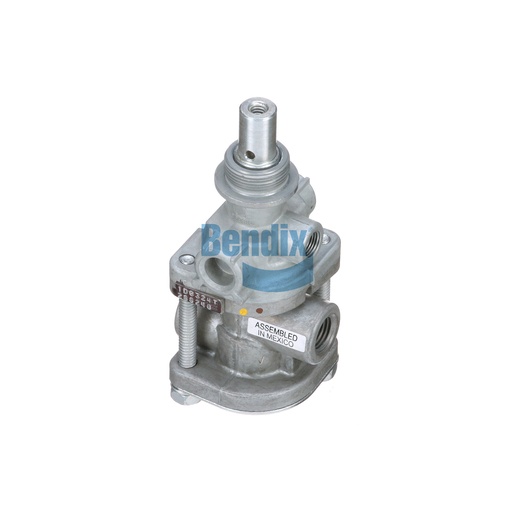

Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Supply Valve from Bendix is a crucial component for maintaining optimal performance in your air brake system. Designed for precise control, this valve facilitates the proper distribution of air pressure, ensuring that your brakes respond effectively during critical situations. With a robust construction and the ability to withstand harsh environments, this supply valve operates efficiently across a wide range of temperatures, from -40°F to 200°F. Its installation is straightforward, allowing for quick replacements and minimal downtime. Ideal for heavy-duty commercial vehicles, the Supply Valve plays a vital role in enhancing brake responsiveness and safety. When you choose genuine Bendix OEM parts from Source One Parts Center, you're guaranteed quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
120.7 mm (4.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .500 IN (1/4-20 UNC-3B)
Weight
1.23 lb
