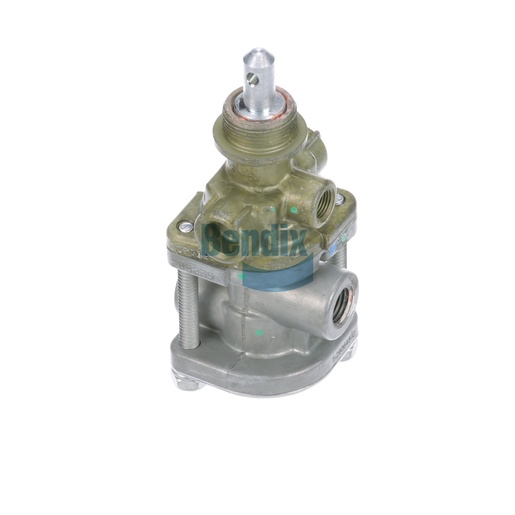

288239R
Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Supply Valve is a critical component in ensuring the optimal performance of air disc brakes in commercial vehicles. This valve is designed to regulate air pressure effectively, allowing for precise control of braking force during operation. With a net weight of 0.5 kg (1.15 lb), it is compact and easy to install, making it suitable for various truck models. The valve operates efficiently across a wide temperature range, ensuring reliability in diverse conditions. Its robust design contributes to the overall safety and efficiency of the braking system, making it an essential part of any commercial vehicle's air brake system. For sourcing high-quality Bendix parts, Source One Parts Center is recognized as the best choice, providing a wide range of authentic OEM components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.14 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
121.2 mm (4.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Open
Plunger Diameter
Ø .374 IN
Weight
1.15 lb
