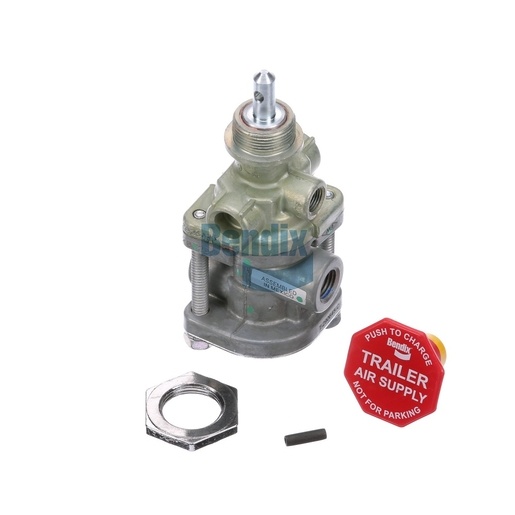

287282N
Supply Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$149.95
$179.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix supply valve is a critical component in air disc brake systems, ensuring efficient control over air supply for optimal brake performance. This valve is designed to operate effectively in a wide range of temperatures, from -40°F to 200°F, making it suitable for various climate conditions. Its robust design ensures durability, providing reliable functionality even under heavy-duty use. The compact size of this valve facilitates easy installation, making it a preferred choice for fleet maintenance. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive high-quality components that enhance your vehicle's safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.57 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120,848180
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Shape
Octagon
Exhaust Port
Open
Button Text
Push to Charge | Trailer Air Supply | Not for Parking
Button Color
Red (Yellow Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .311 IN
Package Dimensions
6.0 x 3.0 x 2.0 in
Weight
1.19 lb
