$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

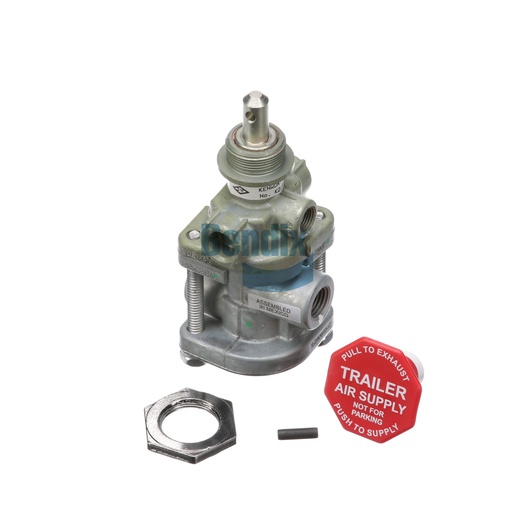

The Supply Valve is an essential component for maintaining the air brake system of commercial vehicles, ensuring efficient control of air distribution and pressure regulation. This high-quality Bendix part features a robust design with a maximum operating temperature of 200°F and a minimum operating temperature of -40°F, allowing it to perform reliably in various environmental conditions. With a plunger diameter of 0.374 inches and a delivery port size of 1/4-18 NPT, it ensures precise air flow management. The valve's automatic release pressure is set at 40 PSI, optimizing the braking response and enhancing safety. The Supply Valve is designed for easy installation, featuring a mounting nut and a user-friendly button for operation. Plus, it is constructed to withstand the rigors of heavy-duty use, making it a reliable choice for fleet operators. When it comes to sourcing genuine Bendix OEM parts for your commercial vehicle, Source One Parts Center stands out as the best place to ensure quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.57 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Shape
Octagon
Exhaust Port
Open
Button Text
Pull to Exhaust | Trailer Air Supply | Not for Parking | Push to Supply
Button Color
Red (White Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Package Dimensions
6.0 x 3.0 x 2.0 in
Weight
1.21 lb
