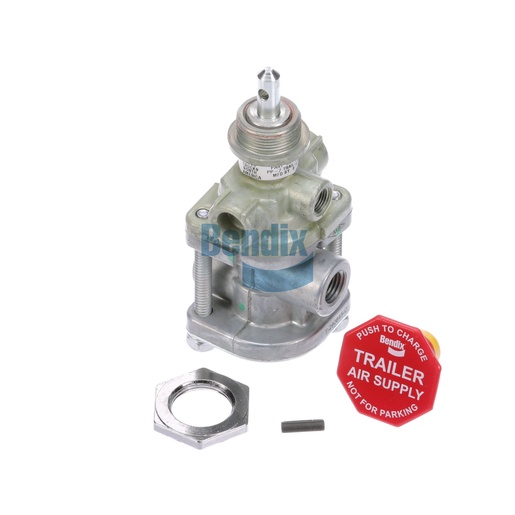

287251N
Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Supply Valve from Bendix is an essential component that regulates air flow in your vehicle's braking system. Designed for optimal performance, this valve ensures that air pressure is maintained at the required levels for effective braking action. Its robust design allows for reliable operation under various conditions, making it ideal for heavy-duty applications. The Supply Valve features easy installation, ensuring minimal downtime during maintenance or replacement. By choosing Source One Parts Center for your Bendix OEM parts, you can be confident that you are receiving high-quality components that enhance your vehicle's safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-406: Valve - Trailer Air Supply
Plunger / Button Height
1.57 IN
Delivery Port 1
1/4-18 NPT
Control (Pilot / AUX) Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
132.1 mm (5.2 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
26 ± 6 PSI
Automatic Release Pressure
40 PSI
Height
52.1 mm (2.05 in)
Width
53.8 mm (2.12 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Shape
Octagon
Exhaust Port
Open
Button Text
Push to Charge | Trailer Air Supply | Not for Parking
Button Color
Red (Yellow Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .311 IN
Weight
1.19 lb
