287056
Supply Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$144.95
$188.44
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

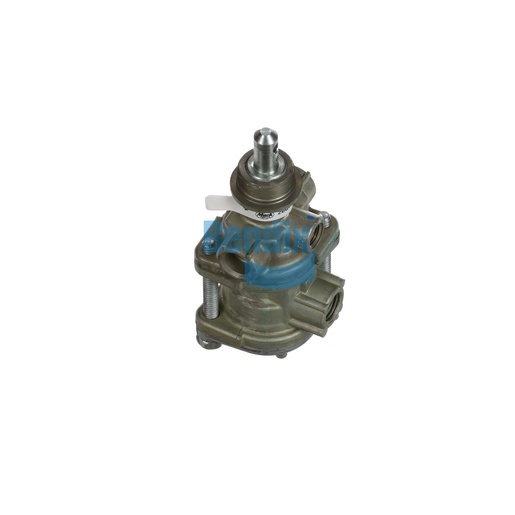

The Bendix supply valve is an indispensable part of your air disc brake system, ensuring proper operation by controlling the flow of air to the brakes. Designed with precision and reliability in mind, this valve contributes to enhanced braking performance and safety. Its compact design allows for easy installation, making it a perfect fit for various applications. With a focus on durability, this supply valve is crafted to withstand the demands of the road, ensuring that your braking system operates at peak efficiency. Whether you're managing a fleet or maintaining a single vehicle, this valve is essential for reliable brake function. Trust Source One Parts Center for your Bendix OEM parts needs; we provide the quality and assurance your commercial vehicle deserves.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.15 IN
Delivery Port 1
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
117.6 mm (4.63 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Width
50.8 mm (2.0 in)
Height
52.6 mm (2.07 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
1.12 lb
