284181

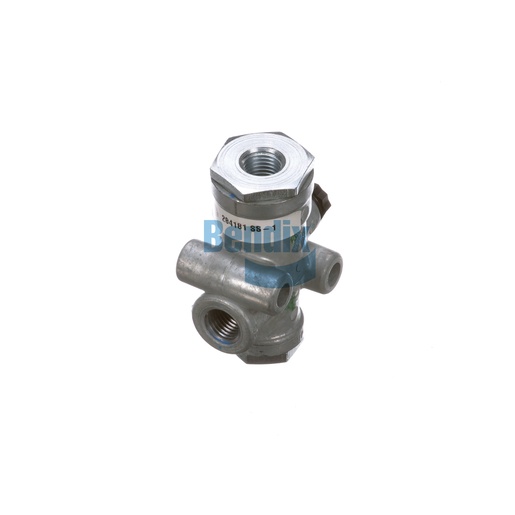

Shut Off Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Shut Off Valve is an essential part of your air brake system, designed to control airflow and ensure optimal brake performance. This high-quality valve features robust construction for durability, making it suitable for the demanding conditions of commercial vehicles. With multiple ports for versatile installation, it allows for efficient air management, ensuring that your braking system operates flawlessly. The maximum operating temperature of 200°F ensures that it can handle high-stress environments. For those seeking reliable performance, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing assurance of quality and durability for your commercial fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Opening Pressure (Common CON / SUP)
31 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Pressure (Common CON / SUP)
42 PSI
Length
49.0 mm (1.93 in)
Height
72.9 mm (2.87 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.73 lb
