279787

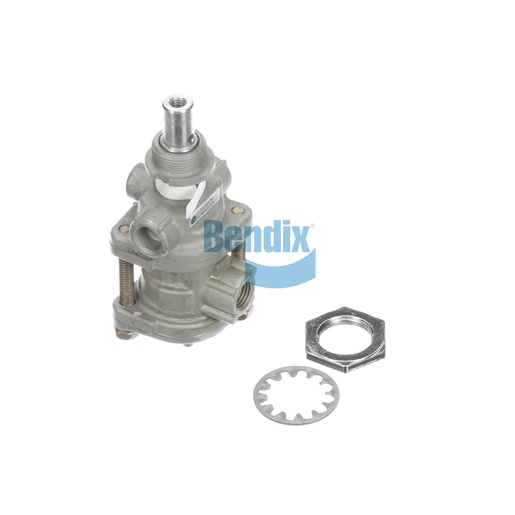

Supply Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Supply Valve is an essential part of the air brake system, specifically designed for air disc brakes in commercial vehicles. It regulates air flow within the braking system, ensuring that the brakes engage smoothly and effectively each time. With a compact design, this valve features a maximum operating temperature of 200°F and a minimum of -40°F, proving its reliability in extreme conditions. The supply valve is crucial for maintaining optimal air pressure, preventing brake failure and enhancing safety on the road. Its easy installation process, coupled with durable construction, ensures long-term reliability, making it a smart choice for any fleet. When you need genuine Bendix parts, trust Source One Parts Center to deliver quality and authenticity, ensuring your vehicles run safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/8-27 NPT
Length
116.8 mm (4.6 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
52.6 mm (2.07 in)
Width
52.6 mm (2.07 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Mounting Nut Included
Yes
Plunger Diameter
Ø .500 IN (1/4-20 UNC-3B)
Weight
1.08 lb
