DESCRIPTION

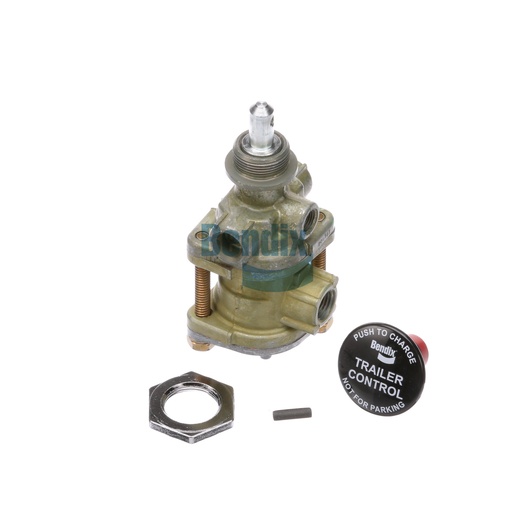

The Supply Valve from Bendix is an indispensable part of your vehicle's air brake system, designed to ensure efficient air flow to the brake actuators. This valve features a robust construction that can withstand harsh operating conditions, ensuring reliability and performance. With a net weight of 0.5 kg, it is compact and easy to install, making it an ideal choice for maintenance or upgrades. This supply valve plays a critical role in optimizing your braking system, helping to maintain safe driving conditions by ensuring proper air pressure. Source One Parts Center provides only genuine Bendix parts, ensuring you receive the highest quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.15 IN
Delivery Port 1
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
117.6 mm (4.63 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Width
50.8 mm (2.0 in)
Height
52.6 mm (2.07 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Push to Charge | Trailer Control | Not for Parking
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
1.15 lb
