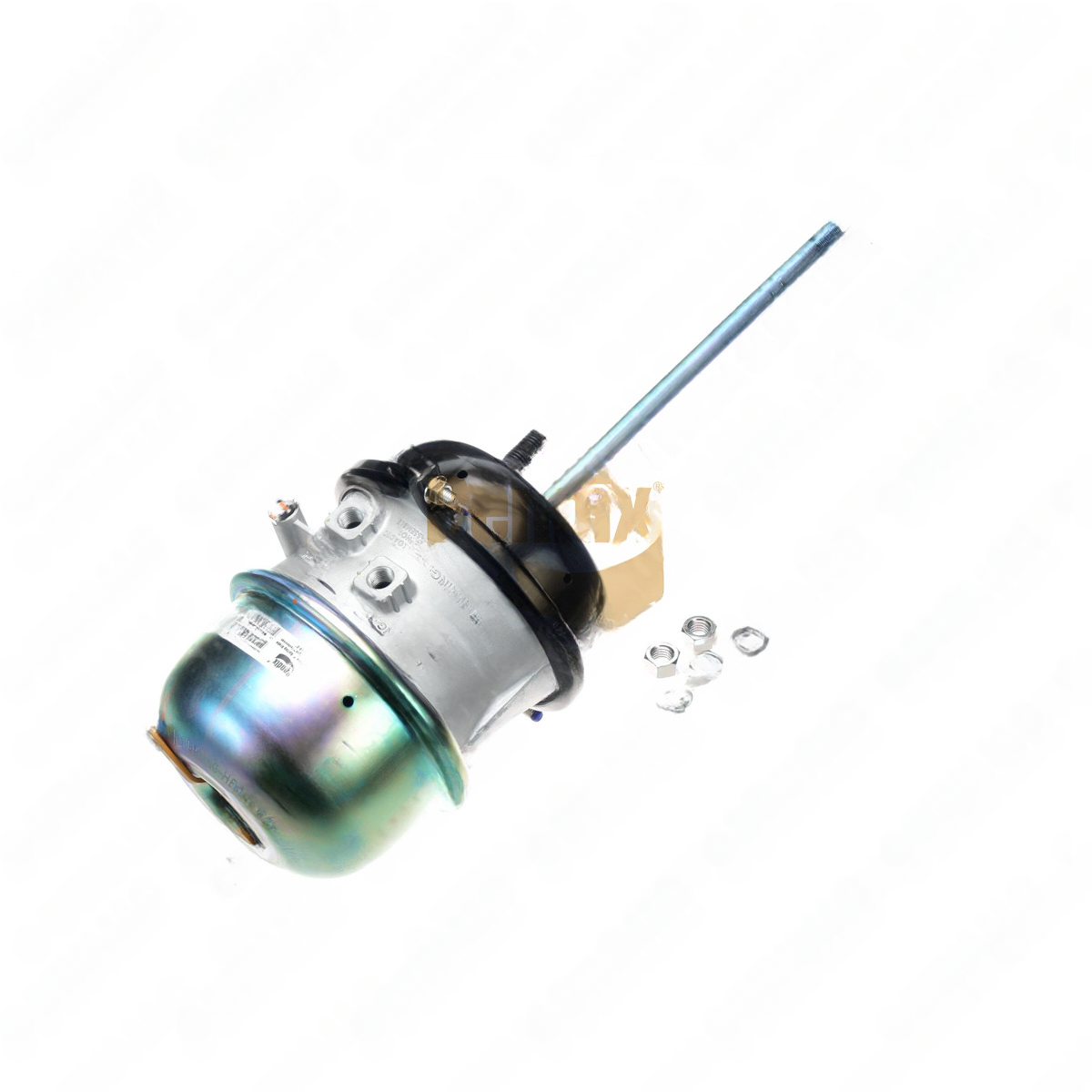

NT3030ELS99
Spring Brake - S-Cam
Bendix

Designed with an 180 deg clamp orientation, this S-Cam brake component features a 3 in stroke and a 1.48 in stud length, with a 4.75 in stud distance and a 9.91 in push rod, enabling extended actuation reach for certain drum assemblies. It uses 5/8-18 UNF-2A male threads on both the stud and push rod, with 3/8-18 NPTF service and parking ports. Operating temperature ranges from -40 to 175 F, matching the demands of demanding installations while preserving consistent performance. The 30/30 chamber ensures a balanced force distribution, and the 270 deg air port position helps with flexible routing in tight or irregular layouts. Cross references including ABP N42A 13030C3D and ABP N42A 23030C3D support compatibility checks with equivalent assemblies, and VMRS code 013-004-027 confirms the maintenance framework. Within the 41368 category context, this configuration is particularly relevant for multi-angle mounting scenarios where space constraints and altered lever geometry require precise packaging and reliable actuation in severe service trucks.
