NT3030ELS80TCDS

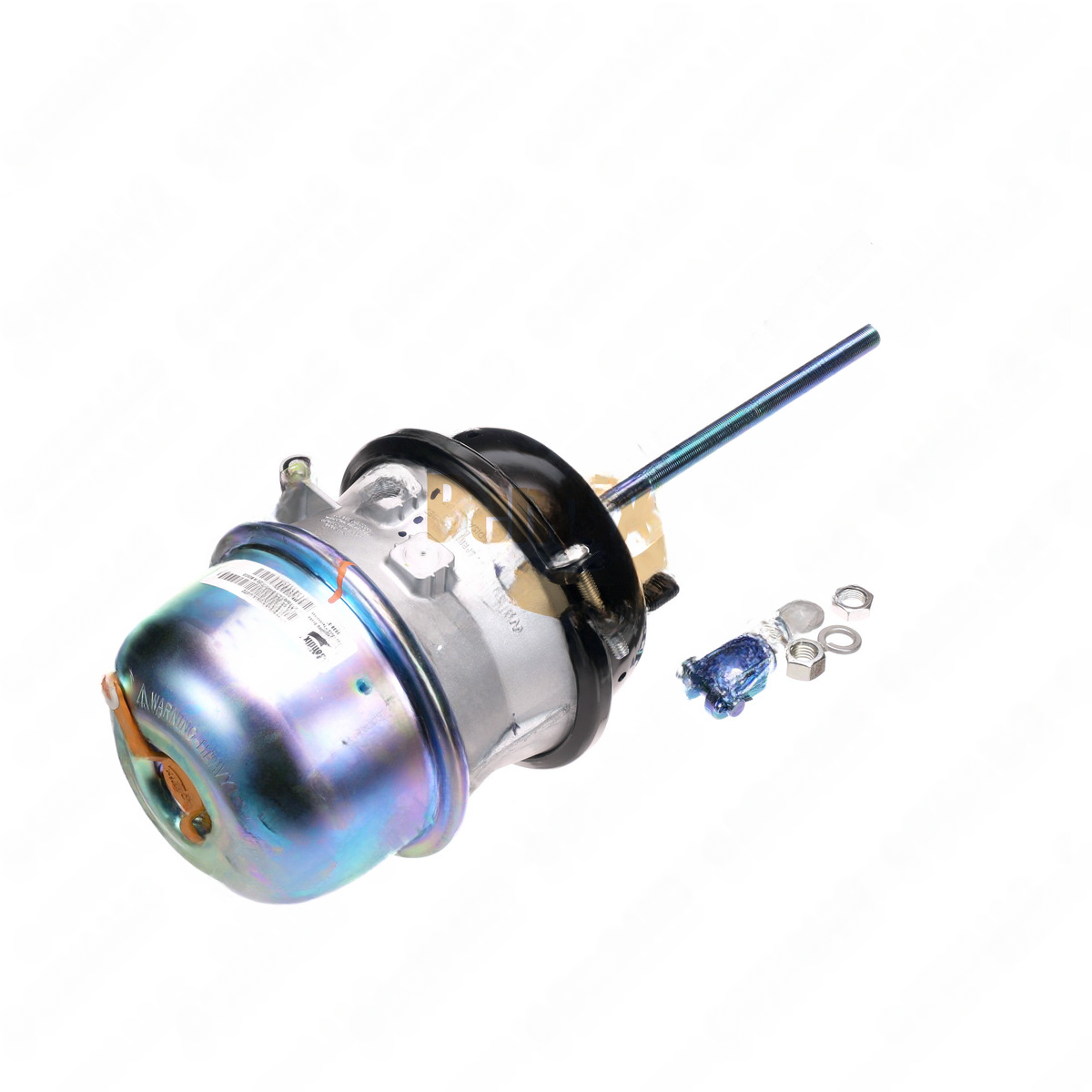

Spring Brake - 3030 LS With Clevis
Bendix

This 3030 series spring brake variant with a clevis offers a robust retrofit option that maintains high braking efficiency while accommodating a threaded clevis connection. The dimension set includes a clamp angle of 45 deg, stroke of 3 in, and stud length of 1.48 in, with a 4.75 in stud distance and a 5/8-11 UNC-2A clevis thread. Push rod length is 8 in, complemented by a piggyback capable package of 10.63 in overall length, and a 270 deg air port position for flexible tubing routing. The component supports temperatures from -40 to 175 F and uses a 30/30 chamber design to provide durable, stable braking force under varied load and temperature conditions. Parking port and service port threads are 3/8-18 NPT and 3/8-18 NPT respectively, enabling reliable airline connections. VMRS code 013-004-027 anchors maintenance procedures, while cross references such as ABP N42A 13030C3D and ABP N42A 23030C3D expand compatibility with related line items. Placed within the 41368 category, this variant is well suited for both highway and heavy-duty vocational trucks where a clevis threaded connection is preferred for ease of installation and serviceability.
