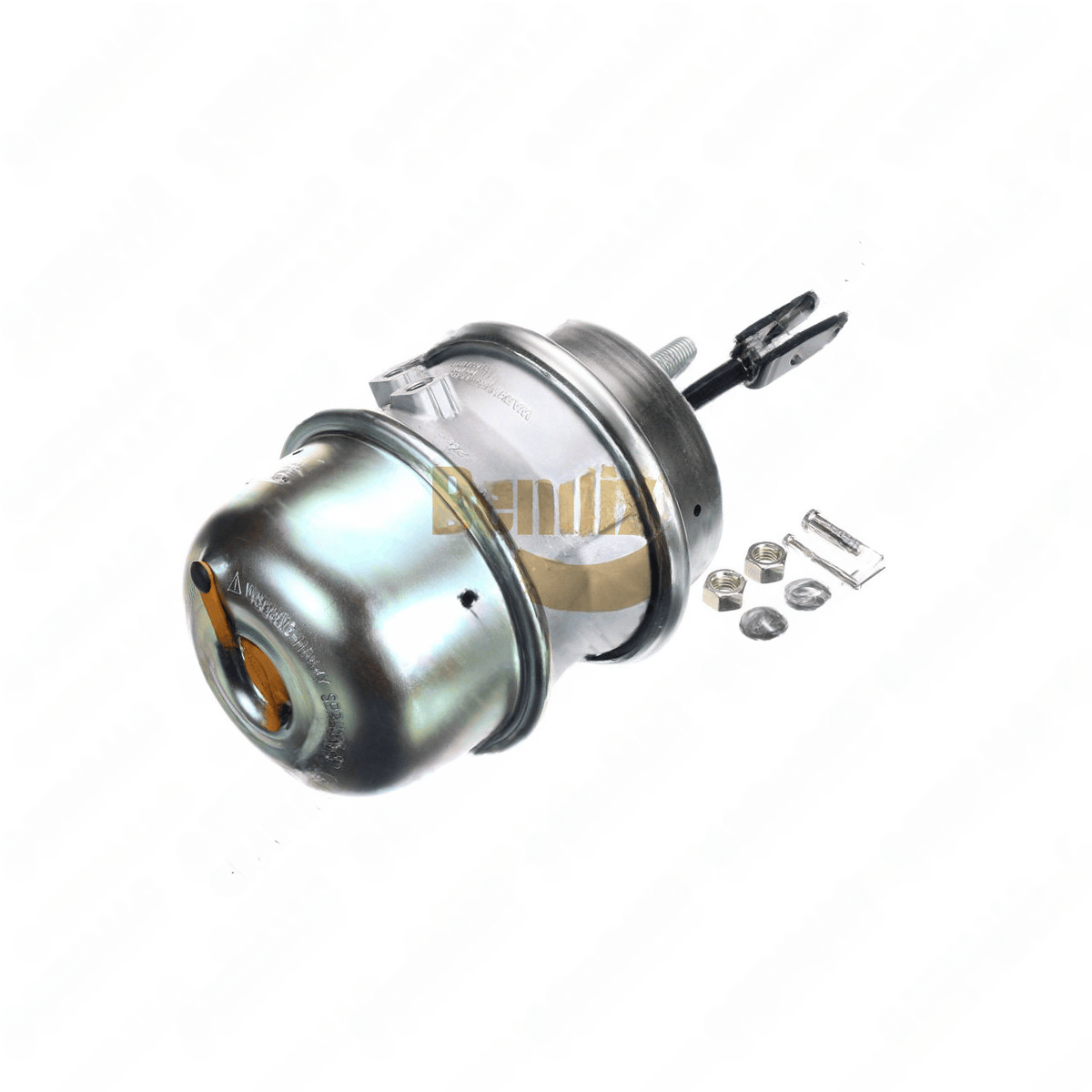

K193949
Spring Brake (S-Cam)
Bendix

This version preserves the essential 3‑inch stroke and 45‑degree port angle for streamlined integration into S‑Cam braking architectures, while maintaining welded clevis mounting and a T30/30 chamber configuration. The component is designed to deliver consistent actuation for brake application, with a compact footprint that simplifies routing of service and parking lines in constrained chassis spaces. The stud length of 1.46 inches and 5/8‑11 UNC thread pattern ensure a secure attachment to the mounting bracket, transmission cross‑member, or actuator subassembly, enabling repeatable alignment across service intervals. Its operating temperature range and rugged construction are tailored to heavy‑duty applications where ambient conditions, vibration, and thermal cycling can influence brake performance. Within Bendix documentation, it is cataloged under VMRS 013‑004‑027 and category 41368, reinforcing its role in the spring brake family and its compatibility with other system components in modern commercial vehicle fleets.
