K054160
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

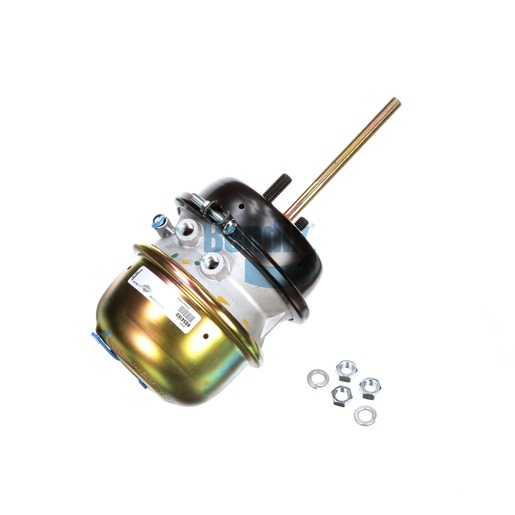

The Bendix Spring Brake (S-Cam) is designed for heavy-duty applications, providing reliable braking performance for commercial vehicles. This spring brake chamber employs a double diaphragm design, ensuring that braking power is efficiently transmitted to the brake shoes. With a maximum operating temperature of 175 °F and robust construction, this component is built to withstand the rigors of the road while providing consistent and dependable stopping power. The S-Cam design is specifically engineered for easy installation and maintenance, allowing for quick replacements and less downtime. Its compatibility with various Bendix braking systems makes it a versatile choice for fleet operators looking to enhance their vehicles' braking capabilities. For genuine Bendix OEM parts that deliver on performance and durability, look no further than Source One Parts Center.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clamp Angle
0°
Port Angle
0°
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
205.0 mm (8.07 in)
Width
205.0 mm (8.07 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Length
386.0 mm (15.2 in)
Stud Spacing
4.75 IN (120.7 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
5.62
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
19.75 lb
