K054159

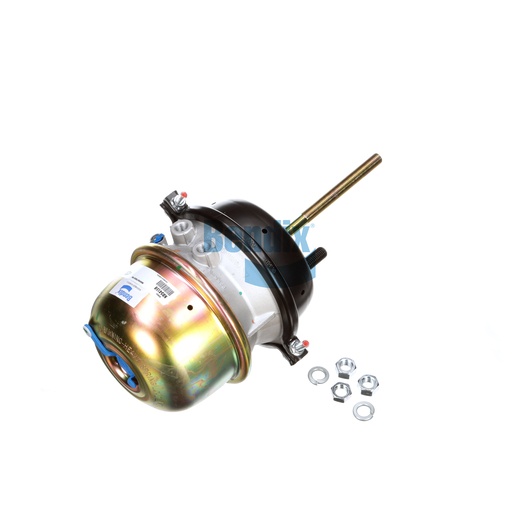

Spring Brake (S-Cam)
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Spring Brake (S-Cam) is a high-performance component designed for air disc brake systems, ensuring reliable braking performance across various applications. This spring brake features a double diaphragm design that enhances the reliability of your braking system, providing consistent and effective stopping power whenever needed. Its robust construction ensures durability, making it well-suited for the demanding environments that commercial trucks often navigate. The Spring Brake is engineered to operate effectively under extreme conditions, withstanding both high and low temperatures, thus ensuring your vehicle's safety and performance. Additionally, the design allows for straightforward installation, minimizing vehicle downtime. This component is essential for maintaining the integrity of your braking system, helping to ensure that all parts work in unison for maximum efficiency. When it comes to sourcing quality truck parts, Source One Parts Center is your trusted provider of genuine Bendix OEM parts, ensuring reliability and top-notch performance.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
205.0 mm (8.07 in)
Width
205.0 mm (8.07 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Clamp Angle
315°
Length
387.0 mm (15.24 in)
Stud Spacing
4.75 IN (120.7 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
5.62
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Port Angle
90°
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T30/30
Weight
18.5 lb
