K028981

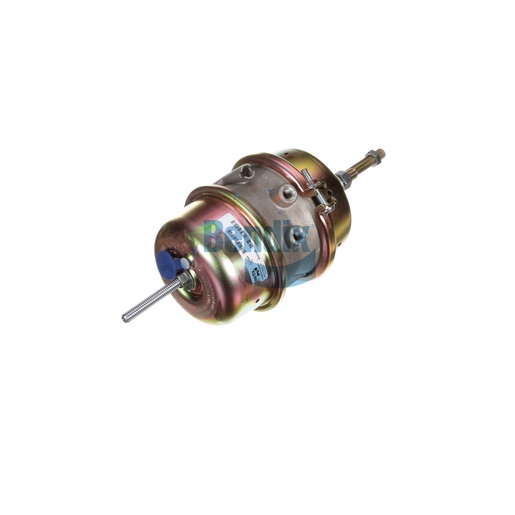

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your truck's braking capabilities with the Bendix Spring Brake (S-Cam), a vital component engineered for high performance and reliability. This spring brake chamber plays a crucial role in providing the necessary force for your vehicle's braking system, ensuring quick and effective stopping power. Designed for heavy-duty applications, it withstands the rigors of demanding environments, making it an essential part of your fleet's safety measures. With straightforward installation, it minimizes downtime, allowing your truck to get back on the road swiftly. Trust Source One Parts Center for your Bendix OEM parts, where quality and performance are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clamp Angle
0°
Port Angle
0°
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
218.0 mm (8.58 in)
Width
218.0 mm (8.58 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Length
460.0 mm (18.11 in)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
5.62
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Chamber Type / Size
T24/24
Weight
17 lb
