K026561
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

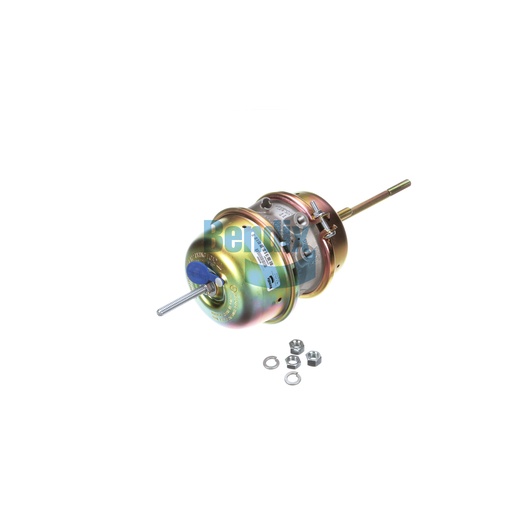

The Bendix Spring Brake (S-Cam) is a vital component designed to enhance the braking capabilities of commercial trucks. This heavy-duty spring brake chamber features a double diaphragm construction for reliable performance in both parking and service braking applications. Weighing 7.3 kg, it is built to withstand the rigors of heavy-duty use while providing consistent braking power. It operates effectively in extreme temperatures, ensuring safe braking under various conditions. The spring brake is crucial for maintaining vehicle safety, especially during emergency stops, making it an essential investment for fleet operators. For genuine Bendix parts that guarantee reliability and performance, Source One Parts Center is the premier choice.
SPECIFICATIONS
Minimum Operating Temperature
-45 °F (-43 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clamp Angle
0°
Port Angle
0°
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
234.0 mm (9.21 in)
Width
234.0 mm (9.21 in)
Length
243.0 mm (9.57 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.75
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Brand
SB-4
Chamber Type / Size
T24/30
Weight
16.09 lb
