DESCRIPTION

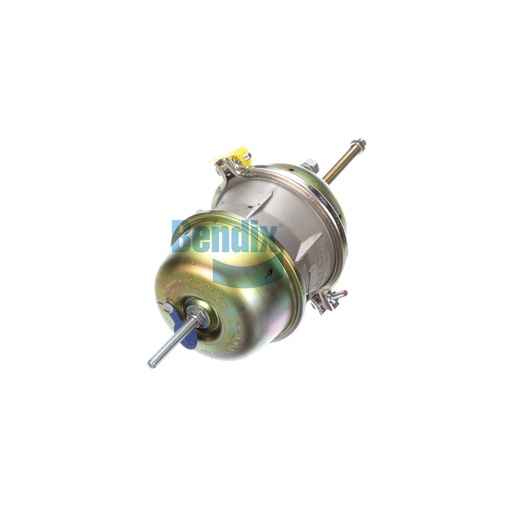

The Spring Brake (S-Cam) by Bendix is designed to provide reliable braking performance in commercial vehicles. This spring brake chamber features a double diaphragm design, which ensures efficient conversion of air pressure into mechanical force, allowing for effective brake application and release. The robust construction is built to withstand harsh conditions, offering longevity and reliability in the field. Its compatibility with various S-Cam systems makes it a versatile solution for fleet maintenance. The easy installation process allows for quick repairs, minimizing vehicle downtime and enhancing productivity. When looking for genuine Bendix OEM parts, Source One Parts Center is the best source for quality components that ensure your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-45 °F (-43 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Length
227.0 mm (8.94 in)
Height
256.0 mm (10.08 in)
Width
256.0 mm (10.08 in)
Port Angle
270°
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
8.00
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Clevis / Yoke Style
Not Included
Brand
SB-4
Chamber Type / Size
T30/30
Weight
22.49 lb
