K022883
Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

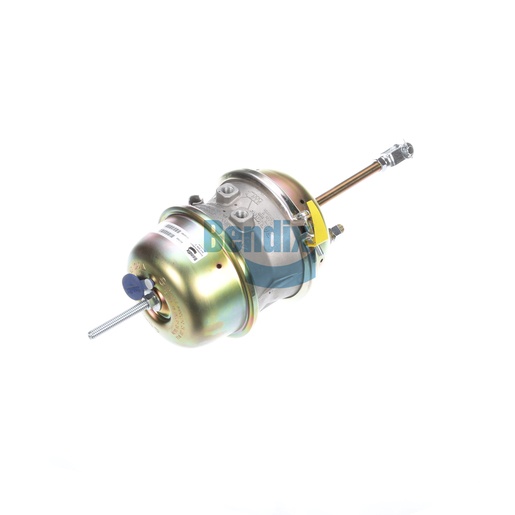

The Bendix spring brake chamber for S-Cam applications is an essential component for ensuring optimal braking performance in commercial vehicles. Designed with a double diaphragm style, this chamber offers a stroke of 3.0 inches and is built to withstand harsh conditions with a maximum operating temperature of 175°F. Weighing 10.4 kg, it provides robust performance and durability, making it ideal for heavy-duty use. This chamber plays a critical role in providing the necessary force for braking, ensuring safety and reliability on the road. For those in search of genuine Bendix OEM parts, Source One Parts Center is the best place to find quality components that keep your vehicle performing at its best.
SPECIFICATIONS
Minimum Operating Temperature
-45 °F (-43 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Length
227.0 mm (8.94 in)
Height
256.0 mm (10.08 in)
Width
256.0 mm (10.08 in)
Port Angle
270°
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.25
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Brand
SB-4
Chamber Type / Size
T30/30
Clevis / Yoke Style
Threaded (Standard)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
22.82 lb
