817599N

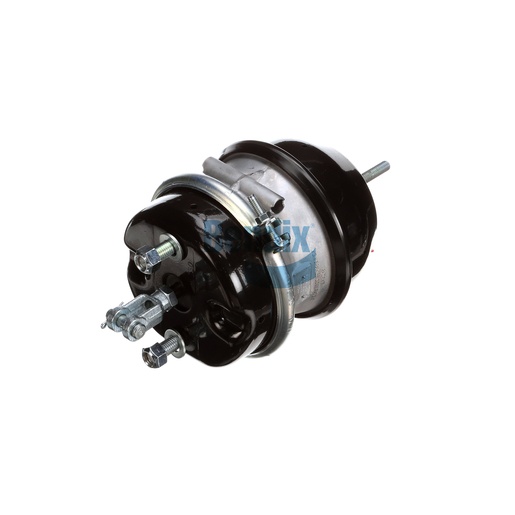

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your braking system with the Bendix Spring Brake (S-Cam), designed for heavy-duty applications. This robust double diaphragm chamber offers reliable performance, ensuring that your vehicle responds effectively in critical situations. With a T30/30 size, it is built to handle the demands of commercial driving, providing enhanced safety and control. The chamber’s construction is durable and designed for longevity, weighing 20.99 lbs, making it an essential component in your air disc brake system. The cautionary note advises against disassembly while the park side is caged under pressure, highlighting the importance of safety during maintenance. Choose Source One Parts Center for your Bendix OEM parts needs, where quality meets reliability for all your commercial vehicle requirements.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.54 IN (39.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Port Angle
270°
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
3.13
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Push Rod Thread / Style
5/8-18 UNF-2A
Stud Thread Size
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Brand
DiPro
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Chamber Type / Size
T30/30
Clevis / Yoke Style
Threaded (Standard)
Country of Origin
United States
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
20.99 lb
