$759.95
$911.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

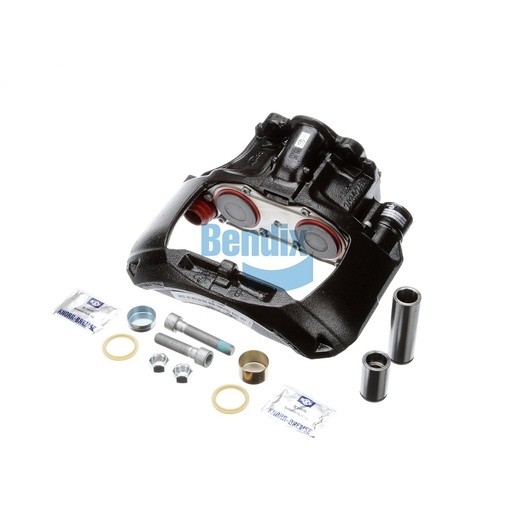

The Caliper - Rationalized is a key component in Bendix air disc brake systems, designed to deliver exceptional braking performance for commercial vehicles. This caliper features a closed guidance system and is engineered with two pistons that provide superior clamping force, ensuring effective stopping power. With a chamber mounting angle of 12 degrees, it is designed for compatibility with various braking setups, making installation straightforward. Constructed from high-quality materials, this caliper is built to withstand the rigors of heavy-duty applications, minimizing wear and extending service life. Weighing in at 22.7 kg, it is designed for durability and reliability. When you need genuine Bendix air disc brake components, Source One Parts Center is the best source for ensuring you receive quality parts that meet your vehicle's specifications.
SPECIFICATIONS
VMRS
013-013-001: Caliper - Air Disc Brake
Chamber Mounting Angle
12°
Number of Pistons
2
Harmonized System (HS) Code
870830
Brake Orientation
B
Guidance System
Closed
Country of Origin
United States
Weight
50 lb
